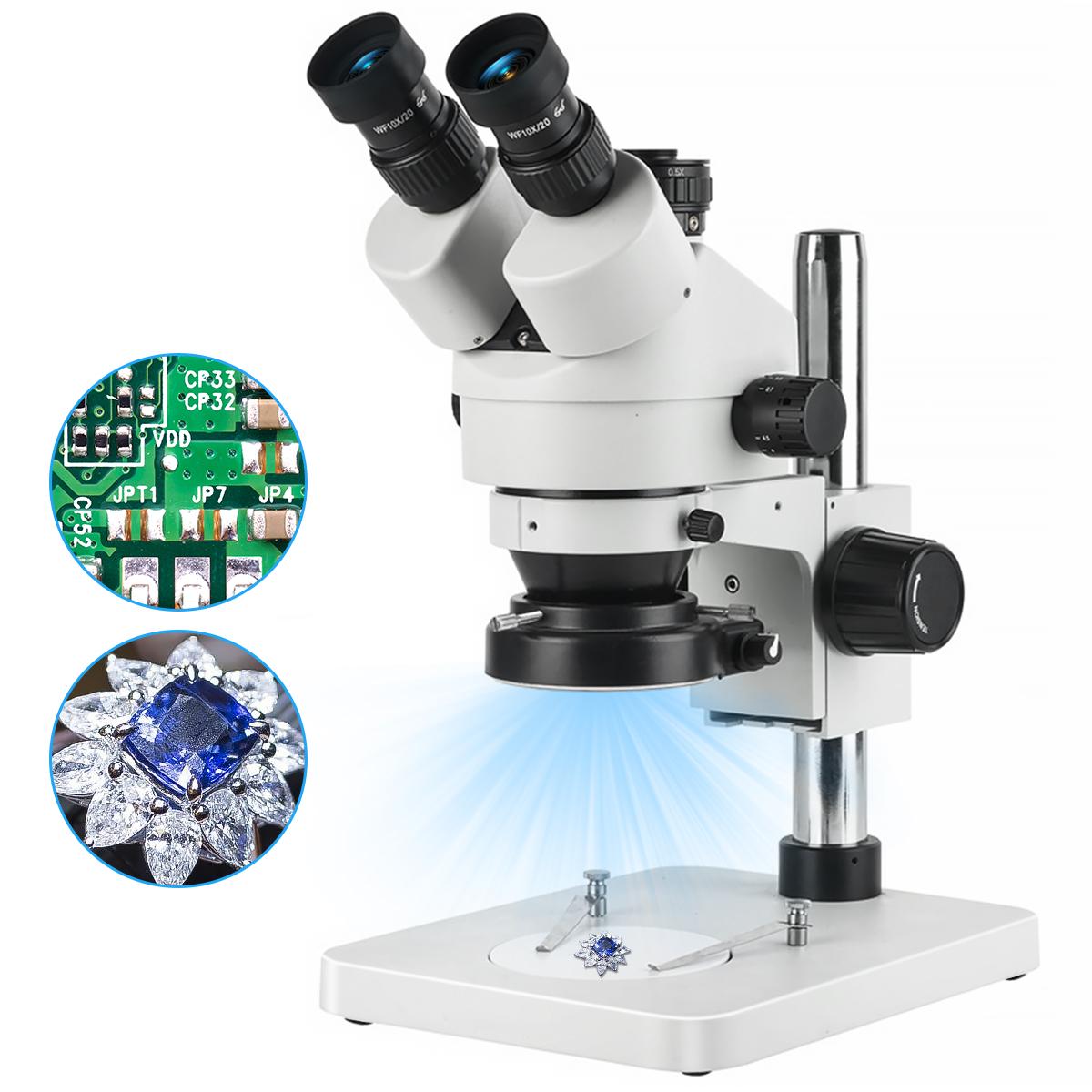

Trinocular Stereo Microscope with 3.5x-45x Magnification 0.5x CTV Adapter 144pcs LEDs Kentfaith
In Stock
On Sale
A$699.99
A$874.99
20% OFF
Black Friday Deal
Tax Free
New customer gift package
&FREE Shipping to Australia
Features
- * 3.5X-45X Magnification, True-to-life Images: Our dissecting microscope features WF10X/20mm eyepieces, a 0.7X-4.5X objective lens, and a 0.5X/165mm auxiliary lens, offering magnification from 3.5X to 45X. With precision-ground optics and glass lenses, you'll enjoy sharp, vivid images with a remarkable sense of depth—spot the metallic texture and vibrant colors of a mosquito's compound eyes.
- * 144pcs Ring Light for Realistic Illumination: Our zoom stereo microscope uses the most modern LED technology with 144pcs light beads. They are dimmable and provide the light spectrum of daylight which allows you to evaluate and compare samples in true color. The 4.5W low-power LEDs generate minimal heat, making them perfect for temperature-sensitive samples.

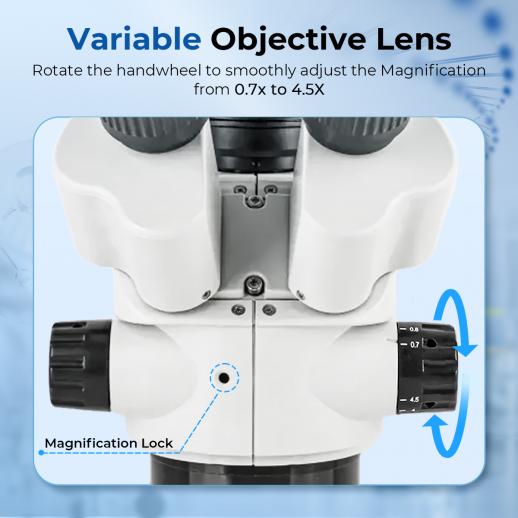

- * Fine Tune with Zoom Objectives: Our trinocular stereo microscope features zoom knobs on both sides, allowing you to adjust magnification in 0.5x steps, from 0.7X to 4.5X. Thus you can perfectly frame your object, and explore details up close for an incredible view. Plus, the magnification lock ensures your settings stay secure, letting you focus entirely on your observations without interruptions.
- * Customized to Your Comfort: Our trinocular head is thoughtfully tilted at a 45-degree angle to reduce eye and neck strain, making long sessions more comfortable. The adjustable interpupillary distance (54mm to 76mm) ensures a perfect fit for various users, while the diopter adjustment ring lets you fine-tune vision discrepancies between both eyes.
- * CTV Adapter & Rich Accessories: Our dissecting microscope comes with a 0.5X CTV adapter for seamless connection to cameras, making image capture and sharing effortless (camera not included). Alongside the adapter, it comes complete with: dual 10X/20mm WF eyepieces, a 0.5X auxiliary lens, eyepiece cups, an anti-oil lens, a dustproof cover, a ring light, and a user manual.
A$699.99
Shipping
&FREE Shipping to Australia
Sale
Buy 2 Get 15% OFF
Buy 3 Get 18% OFF
Buy 4 Get 20% OFF
Buy 6 Get 25% OFF
Buy 3 Get 18% OFF
Buy 4 Get 20% OFF
Buy 6 Get 25% OFF

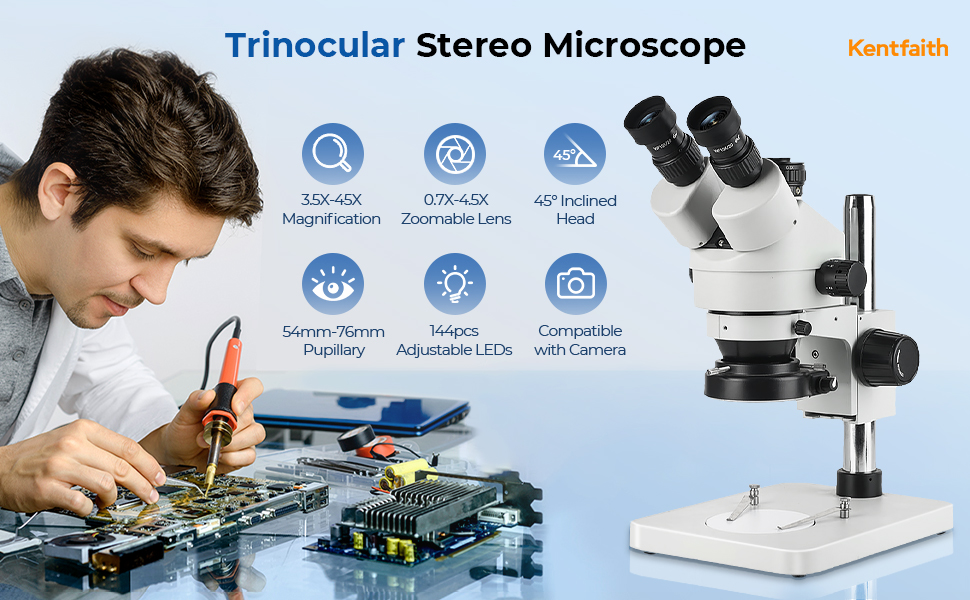

Kentfaith Trinocular Stereo Microscope for Home and Classroom
- Unlike compound microscopes that require slides and produce flat images, zoom stereo microscope provide a 3D view, allowing you to see the texture of larger specimens. Our stereo microscope features a superwide field of view, up to 45X magnification, and true-to-life color reproduction. With a low-heat 144-LED ring light, it delivers clear, bright images. Designed for easy focusing and comfortable viewing, it’s perfect for inspecting biological specimens, rocks, stamps, jewelry, and larger objects that require handling or precision manipulation.
- Highlights:
- ㆍ3.5x-45x Magnification
- ㆍ10X/20mm widefield objectives with eye guard
- ㆍ0.7x-4.5x continuous zoom objective lens
- ㆍDimmable ring light with 144pcs LED beads
- ㆍ0.5X CTV adapter
- ㆍ4.44mm-57.14mm large field of view
- ㆍ100mm-165mm work distance
- ㆍ 54-76mm interpupillary distance

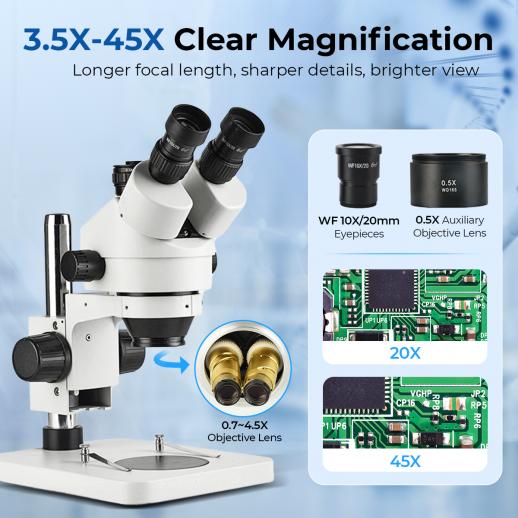

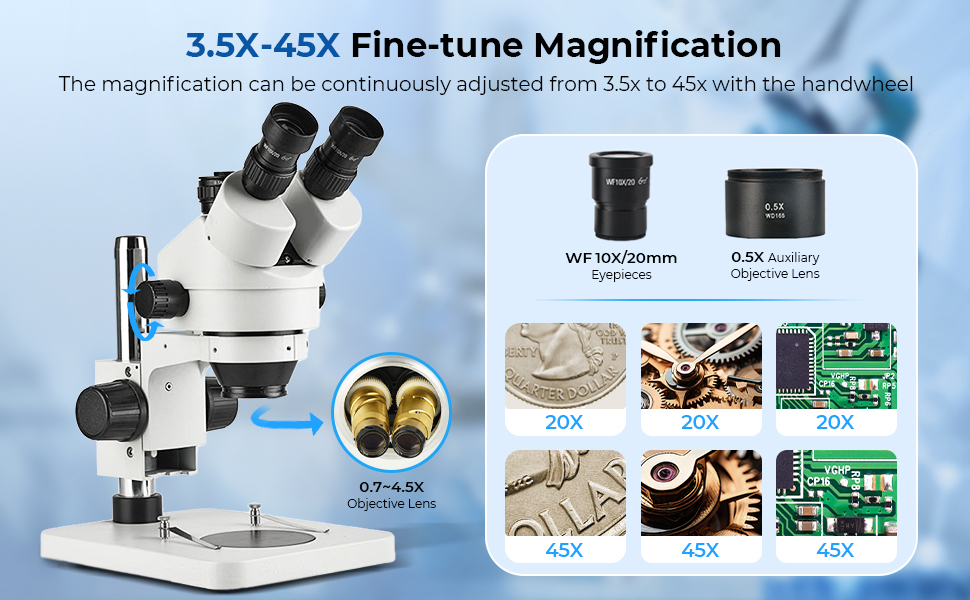

3.5x-45x Smooth Magnnification Adjustments
- Two wide-field 10X eyepieces, the 0.7X-4.5X continuous zoom objective, and a 0.5X auxiliary lens enable a magnification range of 3.5X-45X. A rotation on the zoom knob gets smooth magnification in the 0.5X step, and a push on the magnification lock keeps the setting. You can clearly observe fine details owing to the apochromatic optics and multi-layer HD coatings, reducing chromatic blur for the entire magnification range.
- How to calculate the magnification？
- Total Magnification=Eyepiece Magnification×Objective Magnification×Auxiliary Objective Magnification
- As for our dissecting microscope, the eyepiece magnification is 10X, when you adjust the objective lens to 4.5X and use our 0.5x auxiliary lens, the total magnification is 10X4.5X0.5=22.5 X

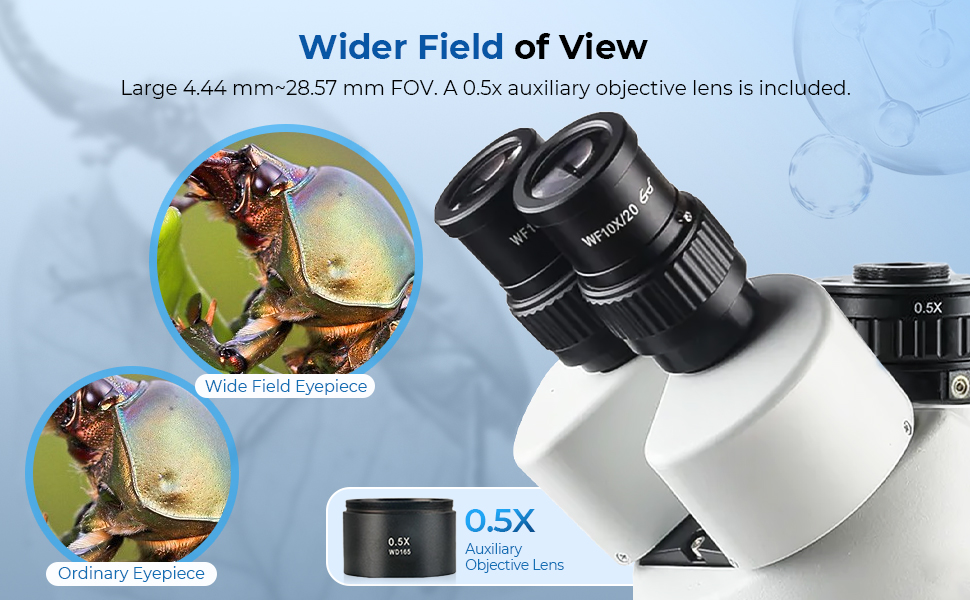

Superwide Field, See More and Do More
- Our trinocular stereo microscope is equipped with 20mm superwide eyepieces, providing a wide field of view ranging from 4.44mm to 57.14mm. This expansive perspective allows for rapid surveys of large specimens, making tasks like intricate dissections, precise assemblies, and thorough inspections more efficient and less time-consuming.
- How to calculate the field of view (FOV)?
- Field of View= Eyepiece Field of View/(Objective Magnification×Auxiliary Objective Magnification)
- As for our zoom stereo microscope, the eyepiece field of view is 20mm, when you adjust the zoom-power objective lens to 0.7x and use a 0.5x auxiliary lens, the field of view is calculated as:
- FOV=20mm/(0.7*0.5)≈57.14mm
See Clearly, Comfortably, Every Time
Easily adjust the interpupillary distance (50-75mm) to match your unique eye spacing, ensuring a sharp, clear image every time. Plus, fine-tune the diopter adjustment ring to correct any vision differences between your eyes, eliminating strain and enhancing clarity for a comfortable, focused view. Soft eyepiece cups included for a more distraction-free viewing experience.

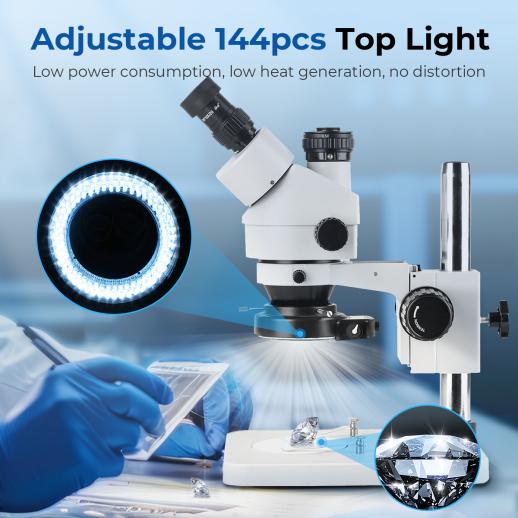

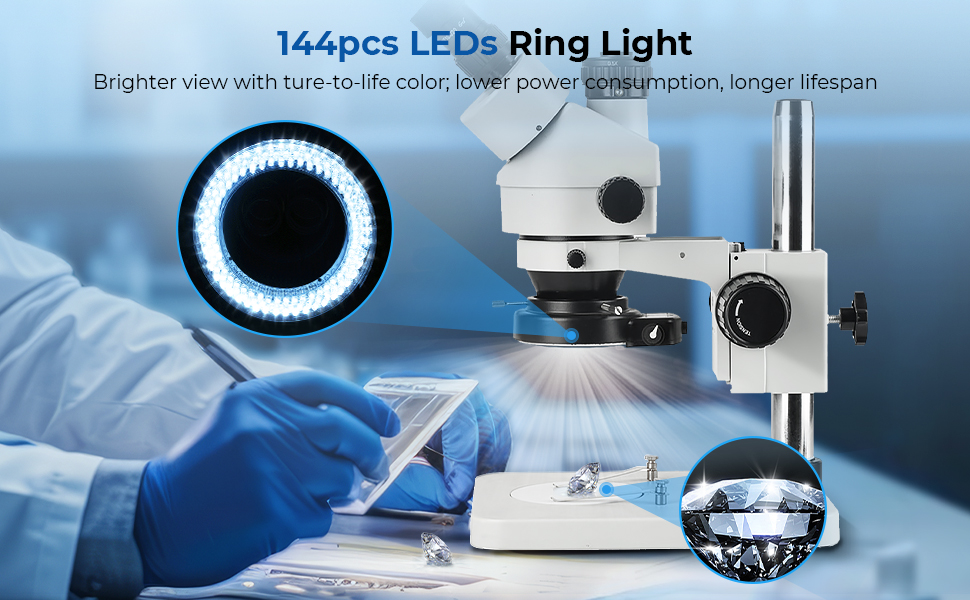

Perfect Illumination in Every Situation
Our ring light features 144 LED beads that let you easily adjust brightness—brighten up dark rocks or dim the light for delicate jewelry inspections. With a daylight spectrum, it ensures true color accuracy for all your samples. The energy-efficient 4.5W design minimizes heat, keeping temperature-sensitive specimens safe. Plus, it’s built to last, offering a maintenance-free solution with an extended lifespan.

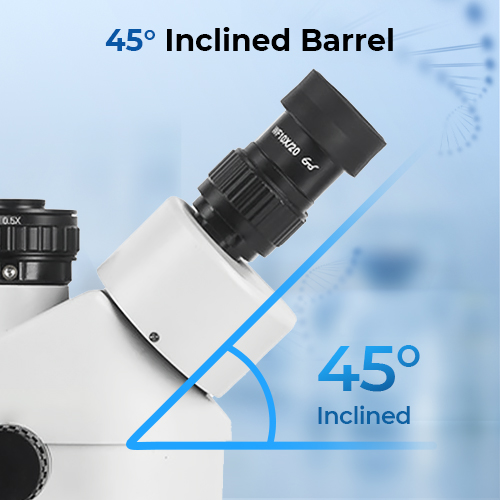

For All-day Comfort
The 45-degree inclination of the head reduces the angle of the user's gaze, minimizing strain on the cervical spine and reducing the risk of neck pain, thus ensuring hours of comfort during extended use.

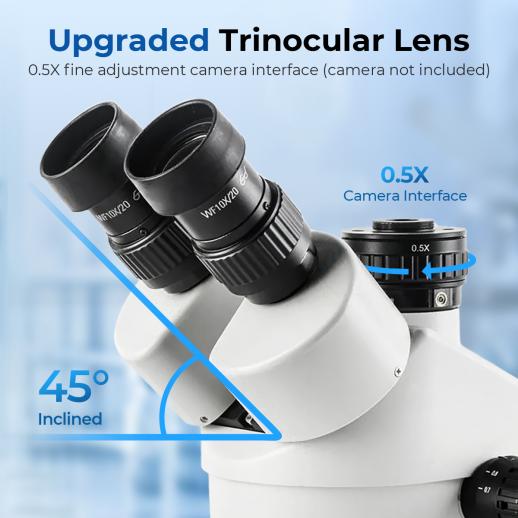

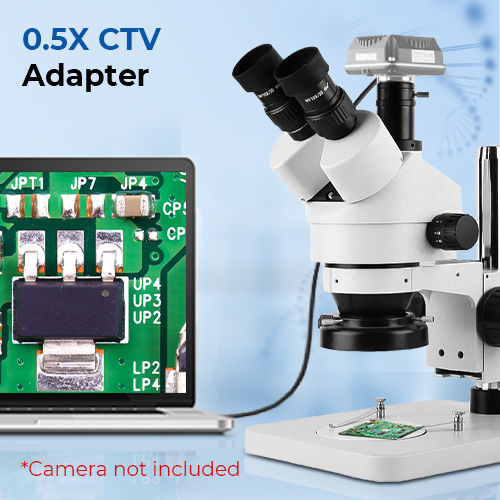

Camera Connectivity
It features a 0.5x CTV interface for connecting a camera to view and record on a large screen. Both the camera and eyepiece ports can capture images simultaneously for observation, no switching required. (Camera is not included).

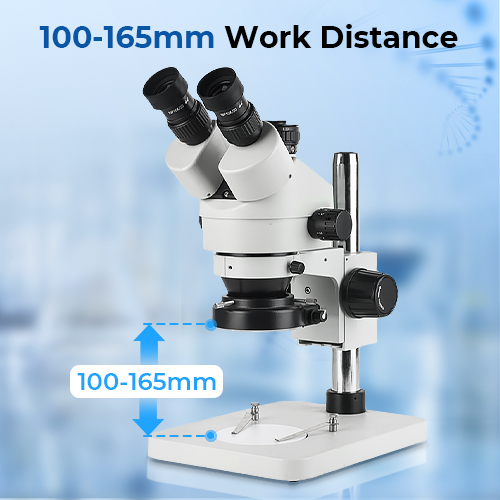

Space for Every Sample
With a long 100-165mm working distance and a large 200x255mm base plate, our dissecting microscope accommodates a wide variety of samples and objects, from tiny bees and leaves to large circuit boards and rocks.

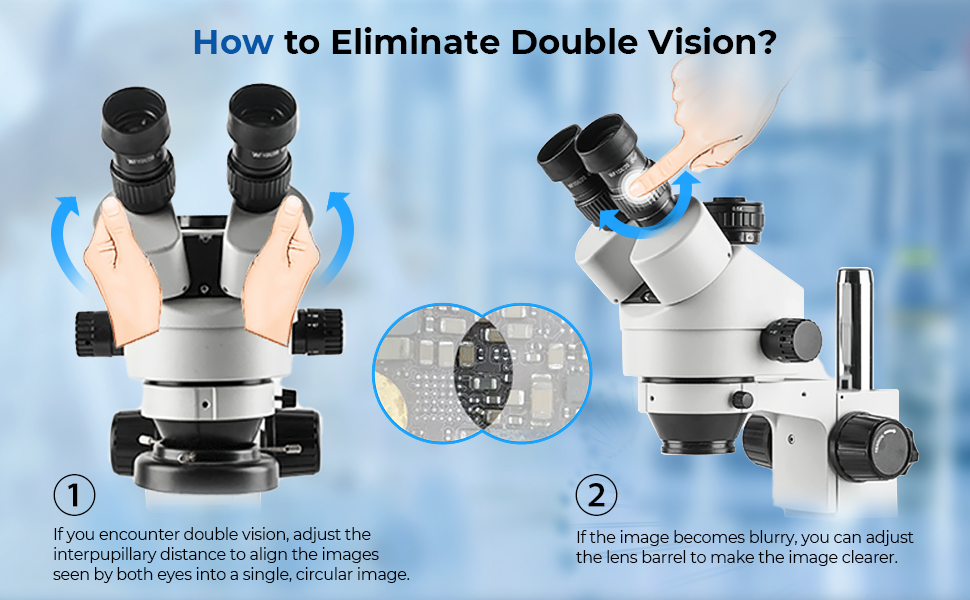

How to Eliminate Double Vision?
To avoid fatigue, adjust the space between the left and right eyepieces to your face. Look through the eyepieces, overlap the left and right fields of view to one.
Precision for Every Task
- Our zoom stereo microscope is a versatile tool for a wide range of applications. Perfect for cleaning and analyzing fossils, examining skin conditions, evaluating jewelry, repairing circuit boards, and conducting low-heat experiments in biological labs.
- What You Will Get
- Trinocular Stereo Microscope x 1
- WF 10X/20mm Eyepiece x 2
- 0.5X/165mm Auxiliary Lens x 1
- 1X/100mm Anti-oil Lens x 1
- 0.5X CTV Adapter x 1
- LED Ring Light x 1
- Eyepiece Cup x 2
- Dust-proof Cover x 1
- User Manual x 1
- Worry-Free Purchase
- If you run into any issues with our trinocular stereo microscope, feel free to contact us immediately. Our friendly customer support team is ready to help you with any questions or concerns, and we promise to get back to you within 1 working day. We appreciate you choosing Kentfaith, and we're committed to ensuring your satisfaction every step of the way.
| Specification | |
|---|---|
| Optical Magnification | 3.5X-45X |
| Eyepiece | High eyespots wide-field eyepiece WF10X/20 mm |
| Objective Lens | 0.7X-4.5X zoom-power lens |
| Auxiliary Lens | 0.5X/165mm Barlow Lens, 1X/100mm anti-oil lens |
| Field of View | 4.44mm-57.14mm |
| Viewing Head | Trinocular stereomicroscope view head inclined at 45°. |
| Pupil Distance Range | 54mm-76mm |
| Working Distance | 100mm-165mm |
| Base Plate Size | 200X255X22mm |
| LED Ring Light | 144 pcs LED, internal diameter size 64mm, outer diameter size 94mm; Input voltage AC90-240V, Maximum output power 4.5W, voltage 12V/0.5A |
| Camera eyepiece interface | Dedicated interface 0.5X CTV |
FAQs
A
Unlike a compound microscope that can only see a very thin specimen, stereo microscopes can be used for viewing almost anything you can fit under them. However, stereo microscopes offer lower magnification, typically 2.5x-50x, comparing to compound microscopes.
Show More
A
You will need a stereo microscope to view more substantial specimens. In addition, you don’t have to make a microscope slide for the stereo microscopes. You can observe: parrot feather, circuit board, star sands, crystals, jewelry, leaves, strawberries, bees, bills, fingerprints and more.
Show More
A
Stereo microscopes are branched out from other light microscopes for the application of viewing “3D” objects. These include substantial specimens, such as insects, feathers, leaves, rocks, sand grains, gems, coins, and stamps, etc. Functionally, a stereo microscope is like a powerful magnifying glass. Unlike a compound microscope that offers a flat image, stereo microscopes give the viewer a 3-dimensional image that you can see the texture of a larger specimen.
